Economical diamond micro powder （HDG）

HDG micron diamond powder- Economical grade

Economic type, with a relatively regular crystal structure and uniform particle size distribution, commonly used for polishing gemstones/ceramics/stones and making resin diamond tools

brand : HNHONGXIANG

grade : economy diamond powder (HDG)

material : green rvd diamond

grit size range : 0-1 micron to 40-60 microns

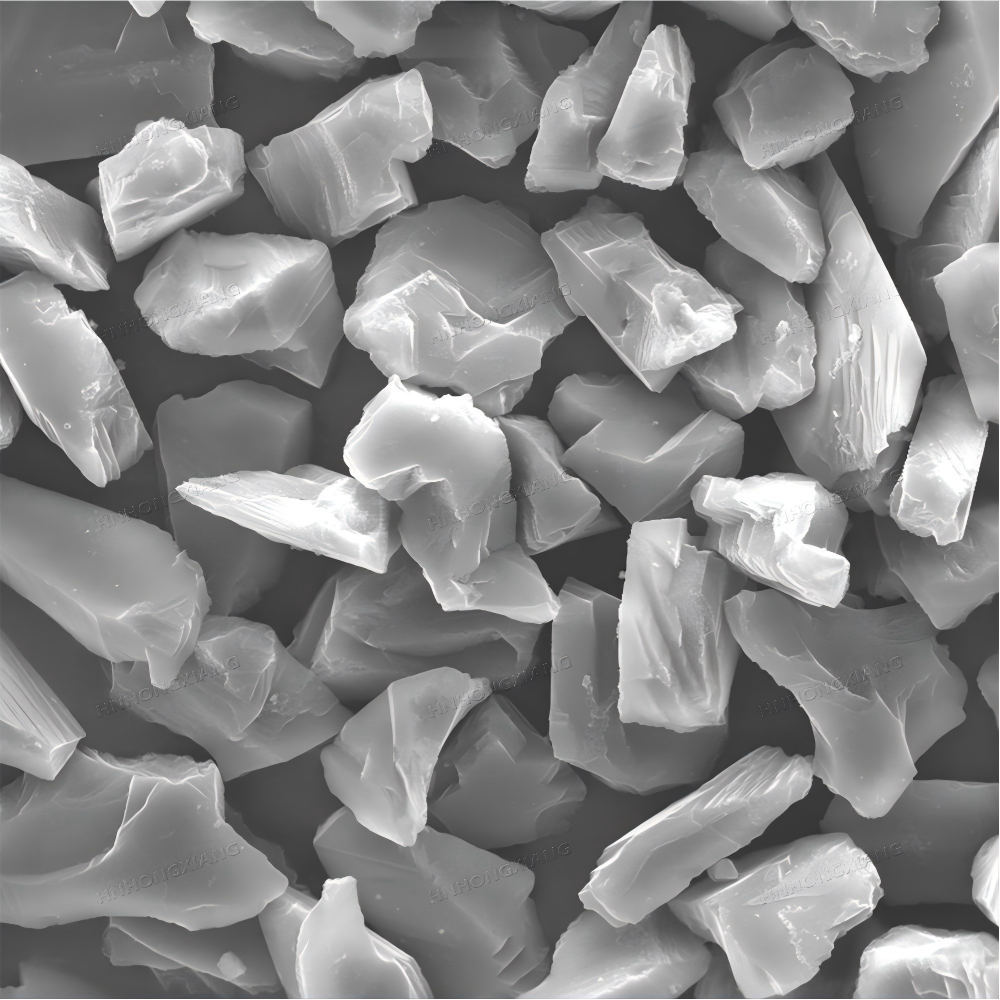

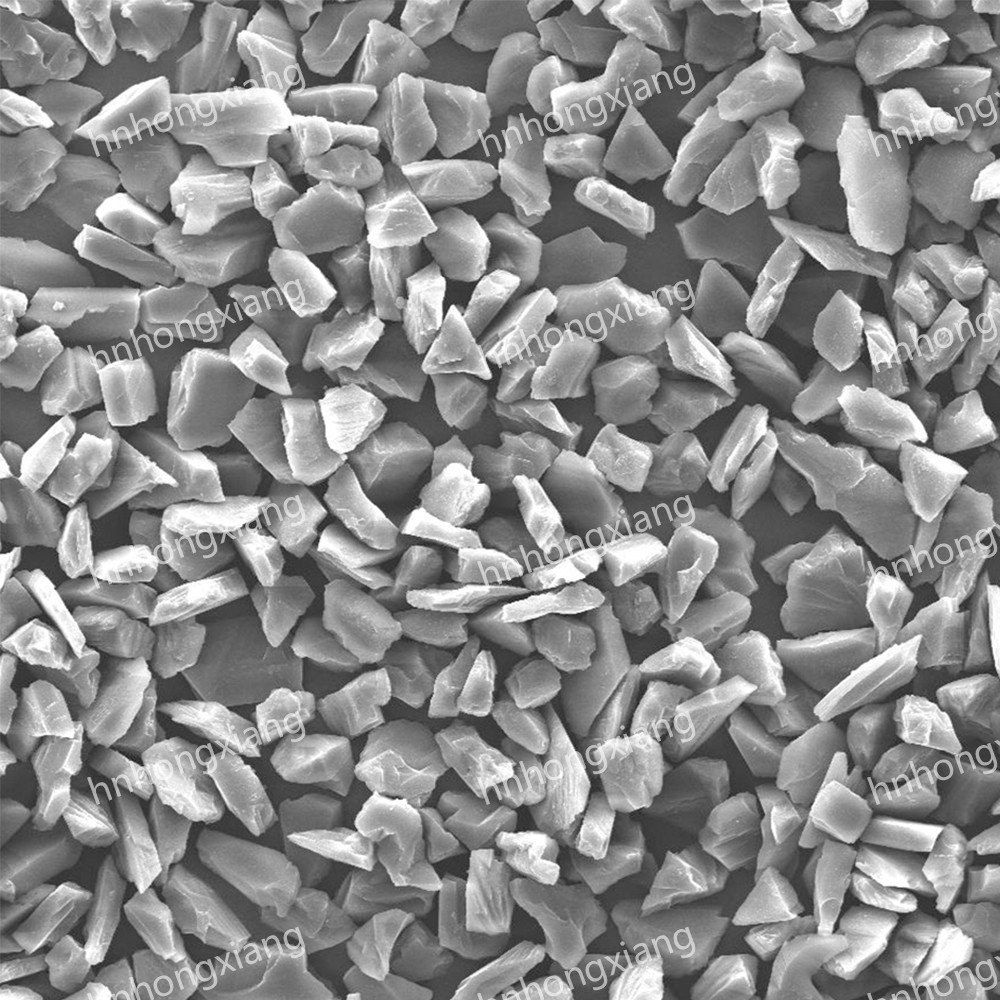

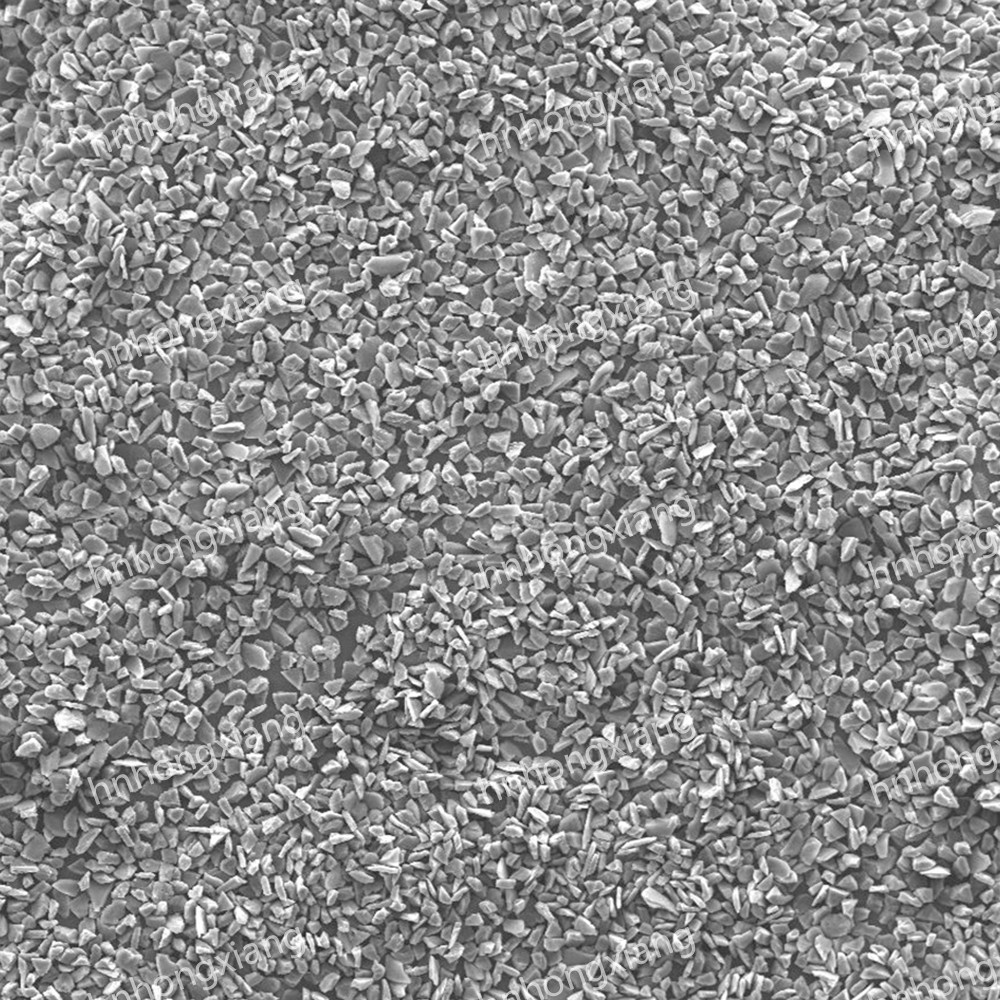

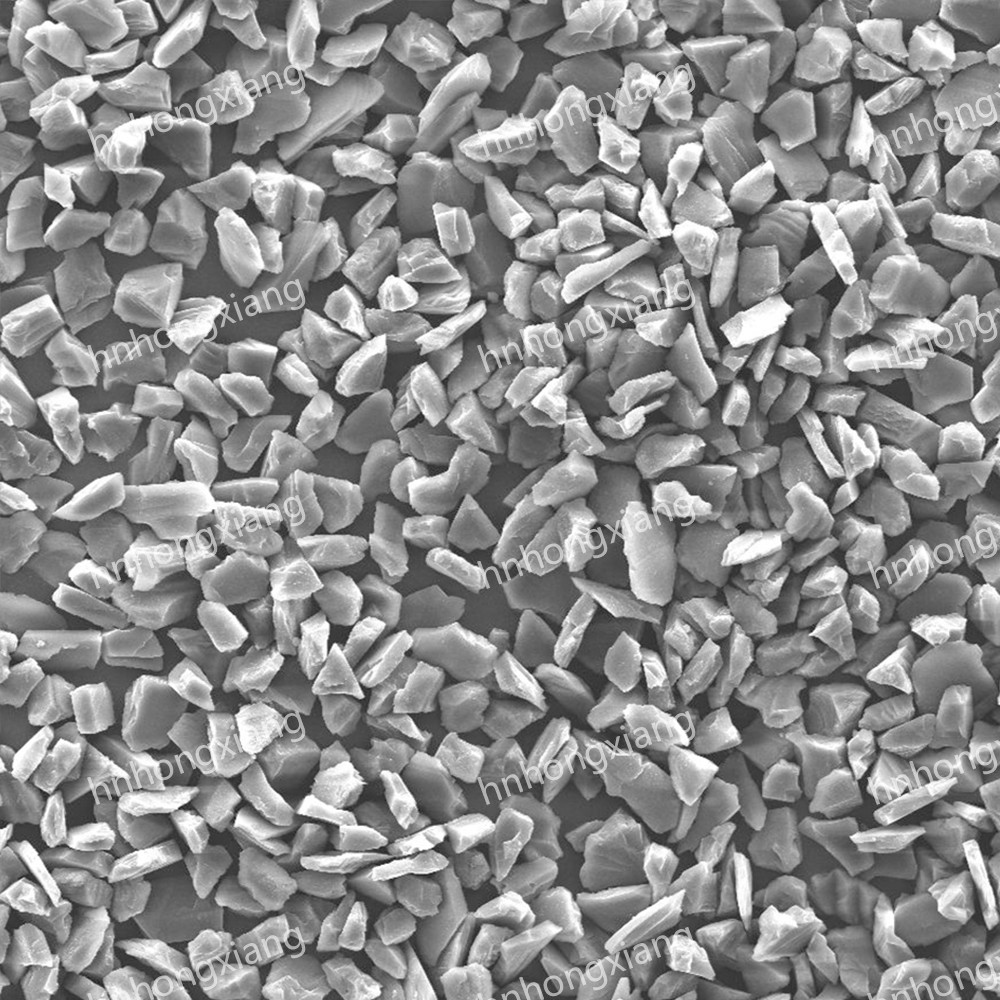

particle shape : Irregular crystal form, polygonal shape

impurity control : relatively controllable, with a relatively pure surface

application : For making diamond polishing pads/diamond abrasive Fickert / resin bond diamond grinding wheel

Detailed Description

HDG economical diamond powder is an irregular multi angular micro powder made from low-strength synthetic diamond through crushing, shaping, and grading. Its core advantages lie in high sharpness and cost-effectiveness – by sacrificing some single particle strength in exchange for stronger self sharpening ability and cutting efficiency. The product has high particle size concentration and pure surface, and is widely used in the grinding and polishing of non-metallic materials such as ceramics, stone, glass, and concrete, as well as in the manufacturing of economical tools such as resin bonded grinding wheels, diamond elastic grinding blocks, and electroplating tools. It is an ideal choice to replace standard grade diamond powder in low load processing scenarios.

Product Grit

Standard of China	Standard of International	Mesh	Medium (D50um)	Standard of China	Standard of International	Mesh	Medium (D50um)
W1	0-1	15000	0.6～0.8	W1.5-	0-2	13000	1
W1.5	1-2	12000	1.1~1.3	W2.5	1-3	10000	1.6~1.8
W3	2-3	7000	1.9~2.1	W3.5	2-4	6500	2.2~2.6
W3.5	2-4	6000	2.6~3.0	W4	2-5	5000	3.1~3.4
W5	3-6	4000	3.5~4.2	W6	4-6	3500	4.4~5.0
W7	4-8	3000	5.0~6.0	W10	4-9	2500	6.1~6.5
W10	5-10	2000	6.5~7.3	W10	6-12	1800	7.3~8.3
W12	8-12	1600	8.3~9.0	W14	7-14	1500	9.1~10.5
W14	8-16	1300	10.0~12.0	W20-	10-20	1200	12.5~15.0
W20	12-22	1000	15.0~17.0	W20+	15-25	800	18.0~20.0
W28	20-30	700	20~23	W28+	22-36	600	23~26
W40-	20-40	500	26~29	W40	30-40	450	29~32
W40+	35-45	400	32~36	W50	36-54		37～43
325/400	320	43~48		270/325		280	48～55
230/270		240	56~64	200/230		200	65~73

Product Application

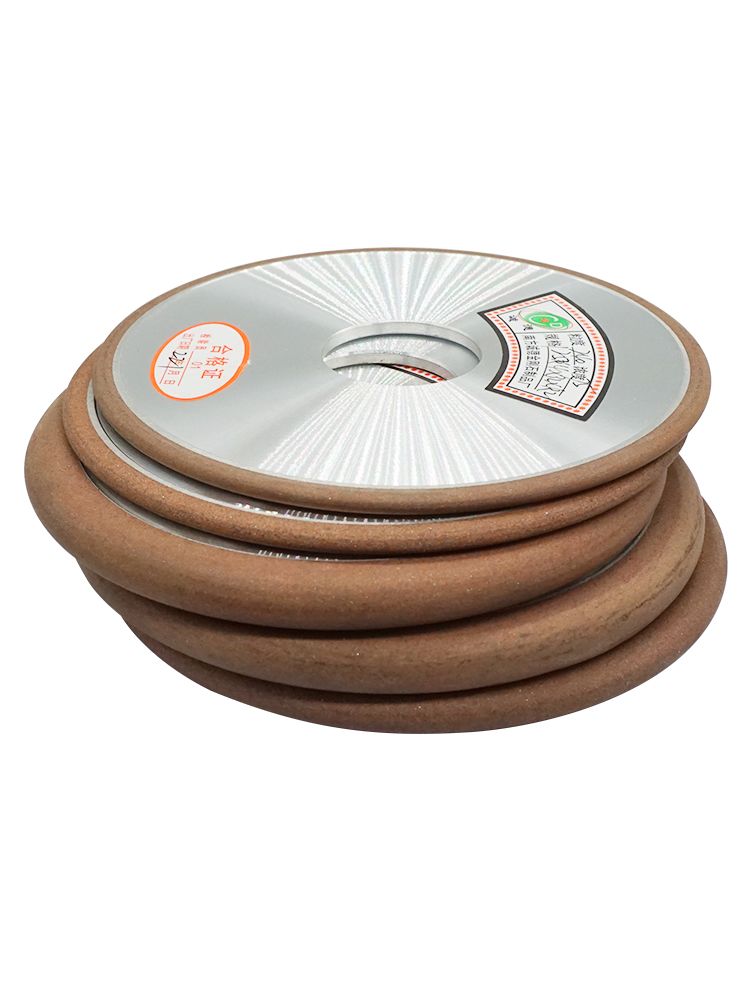

resin bond dimaond tools 1

Mostly used for resin grinding wheels, soft grinding discs, etc

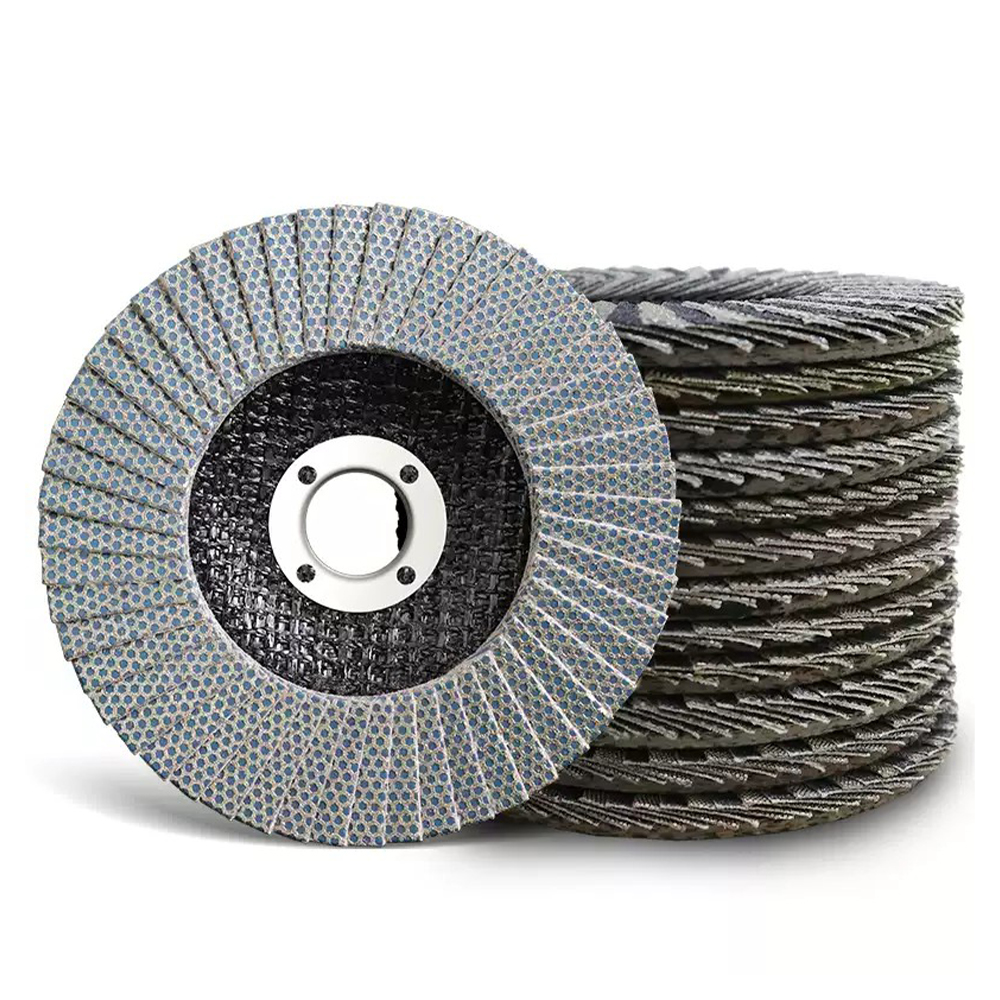

Electroplated Diamond Tools

Low demand electroplated diamond grinding wheels, etc

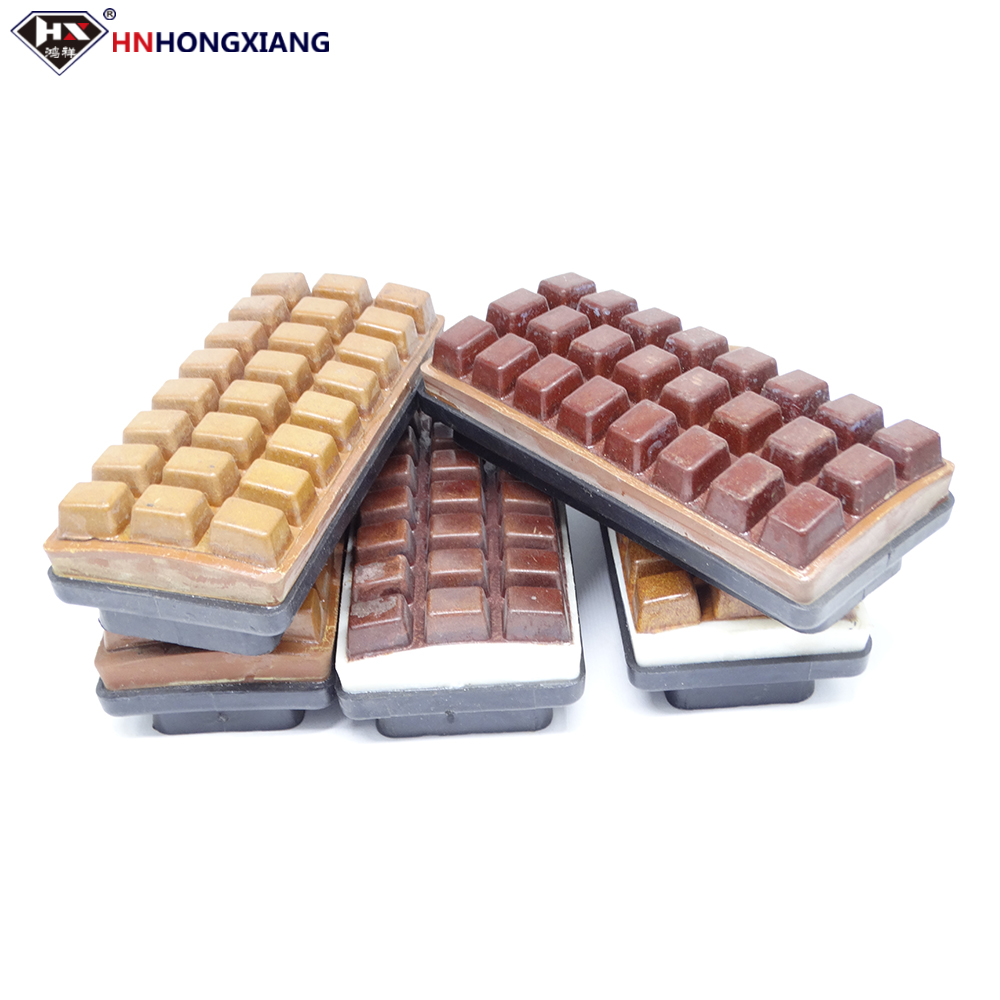

Elastic module

Produce tool products such as elastic modules

Gemstones, tool polishing

Proper polishing of gemstones and hard alloy tools

Package & Shipping

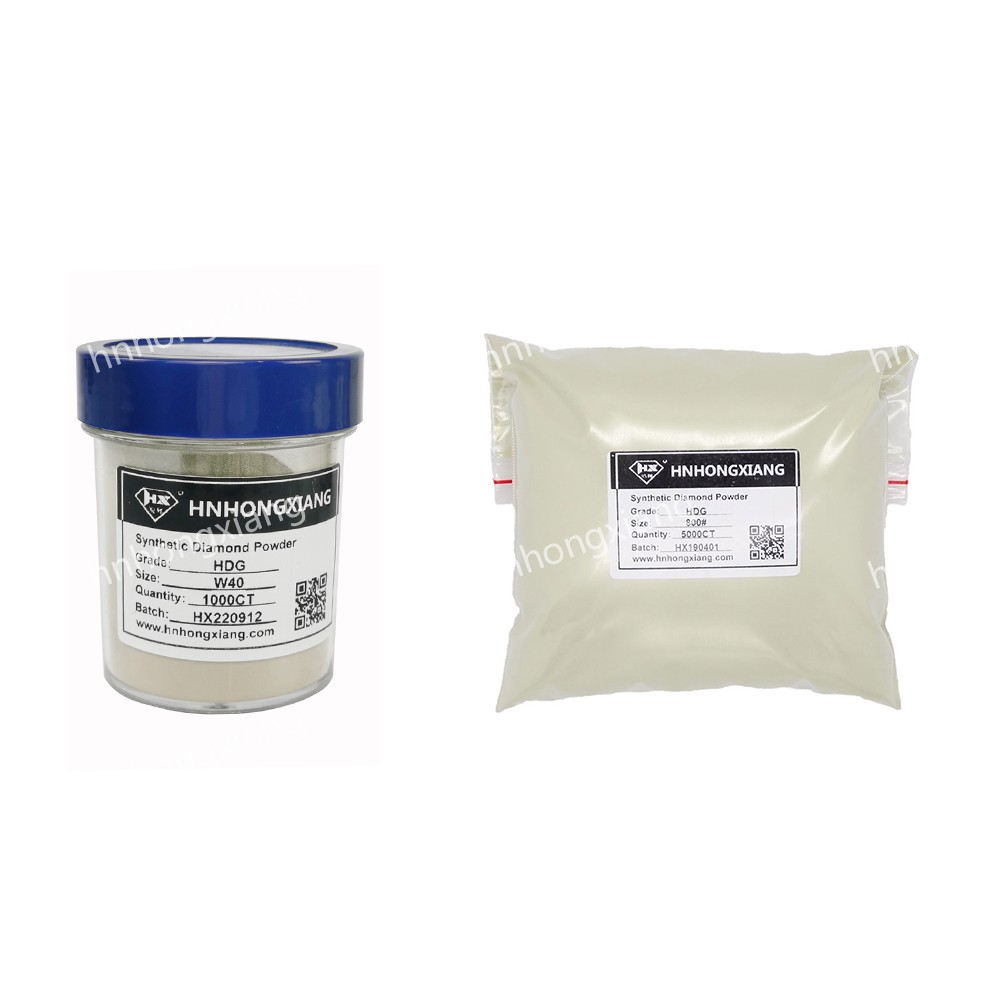

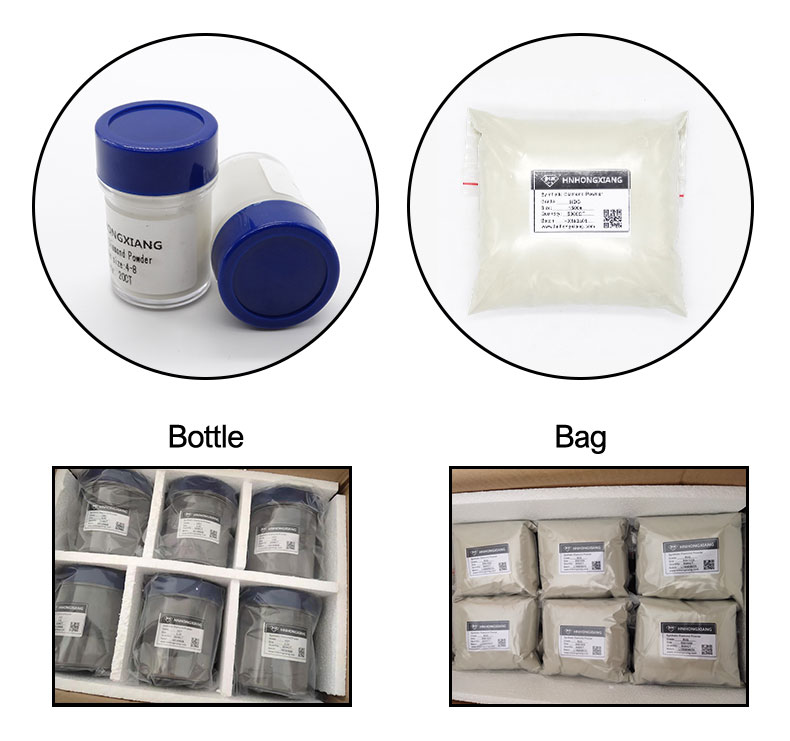

Our diamond micropowder is available in two secure packaging formats. Bottles use high‑density HDPE for excellent sealing and moisture resistance. Double/triple‑layer bags provide extra mechanical protection and are ideal for larger quantities. Every package is clearly labeled with product name, particle size, batch number, and net weight — ensuring full traceability.

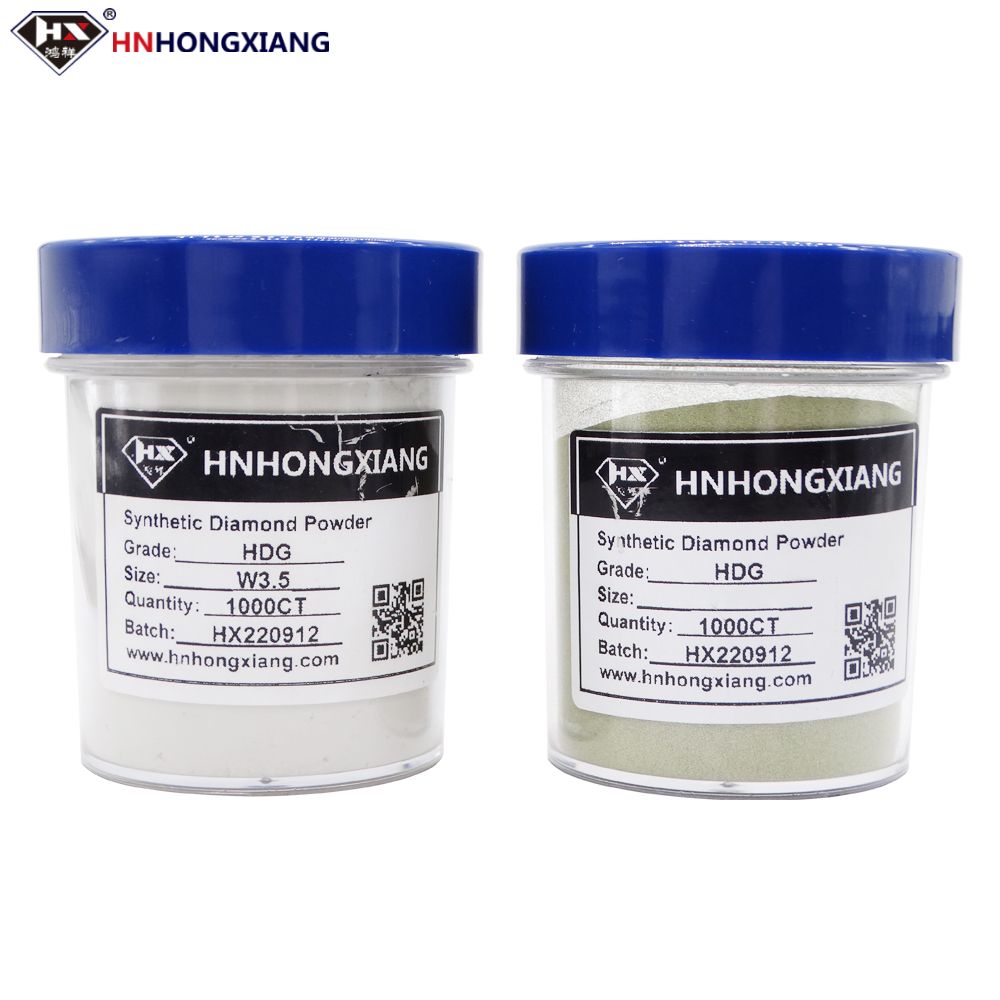

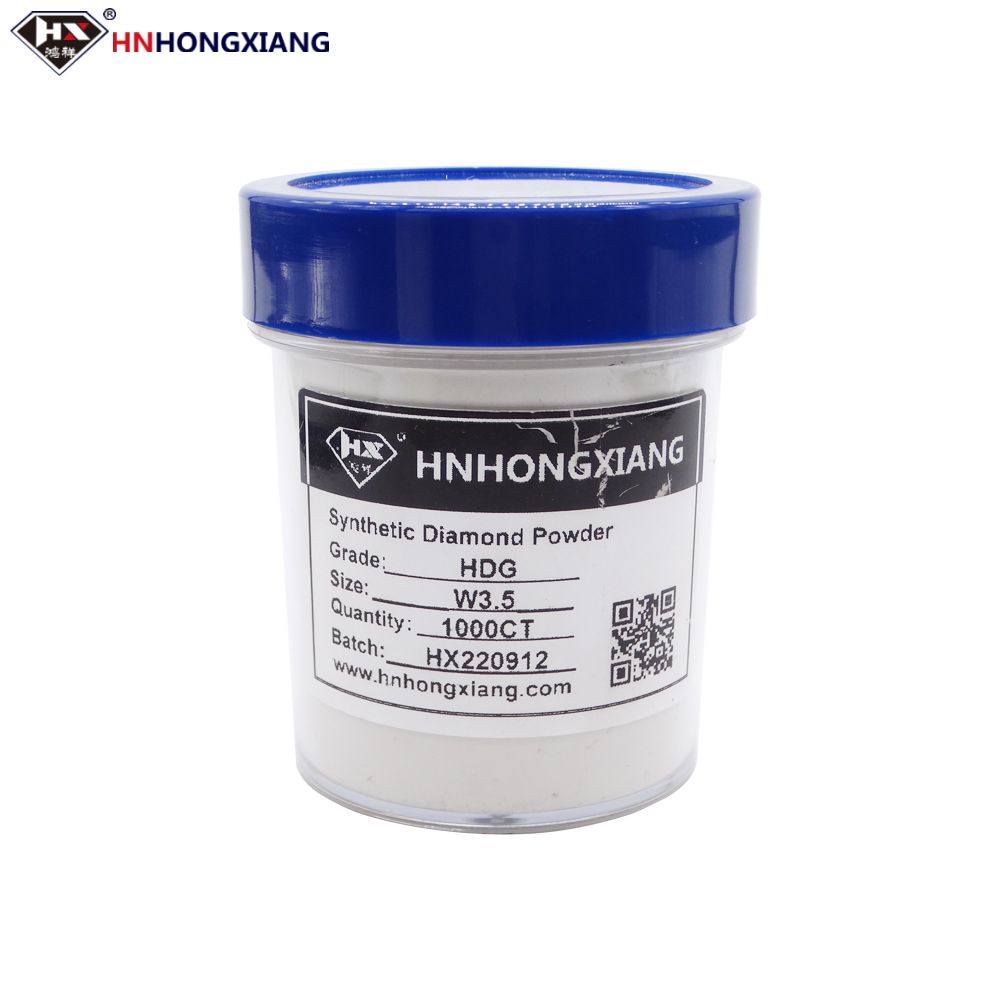

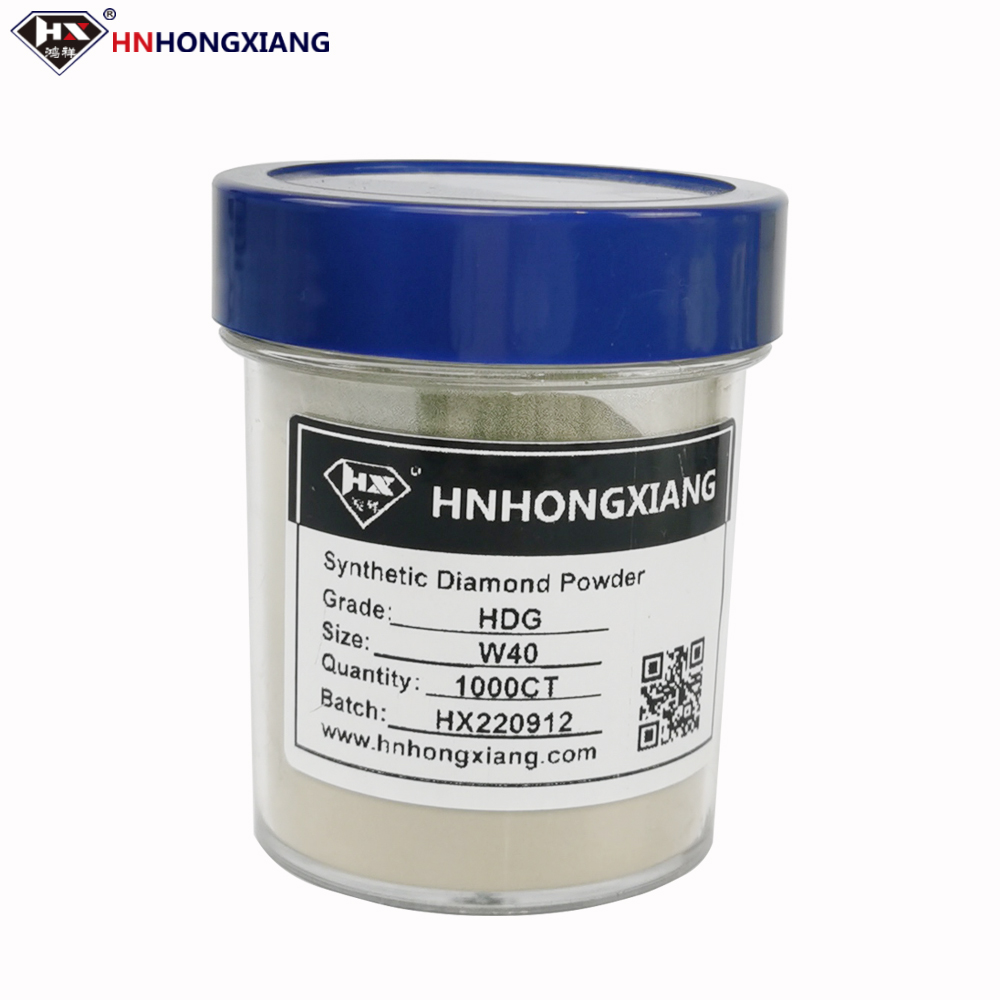

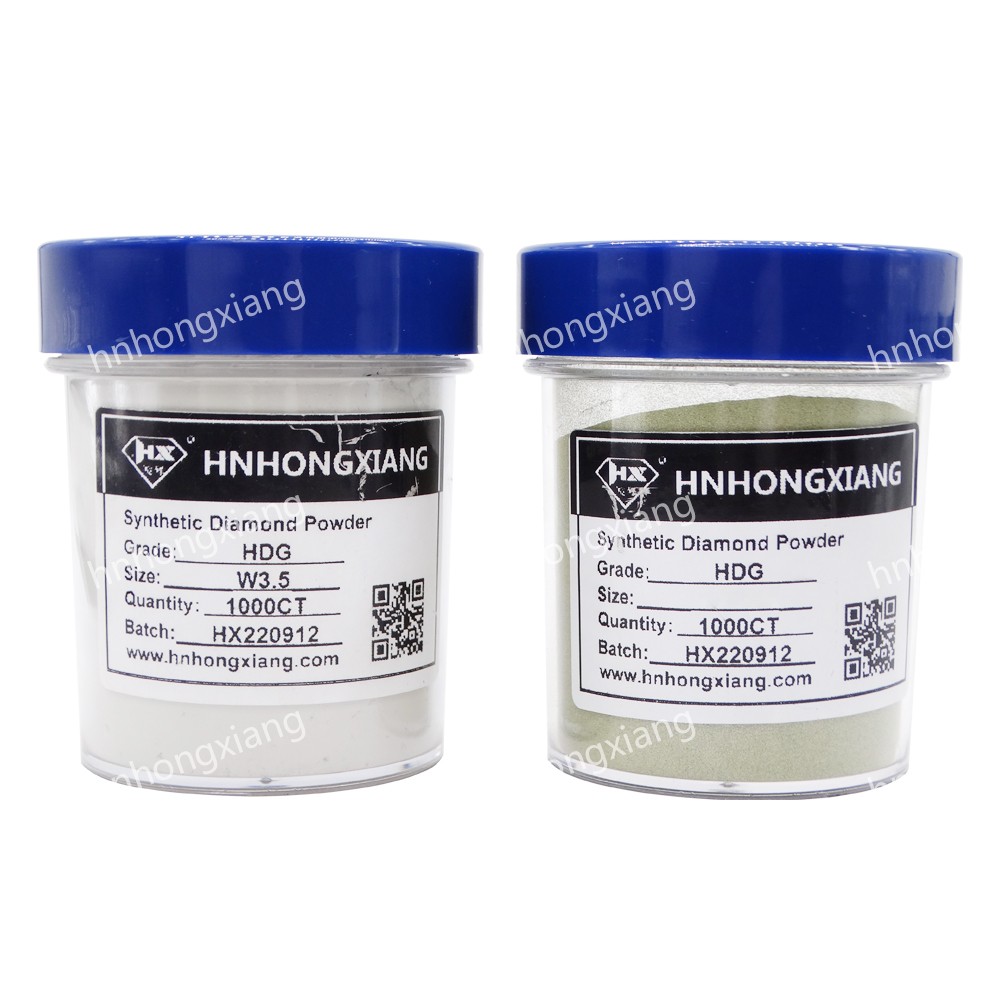

📦 Bottle

100 ct
500 ct
1000 ct
5000 ct

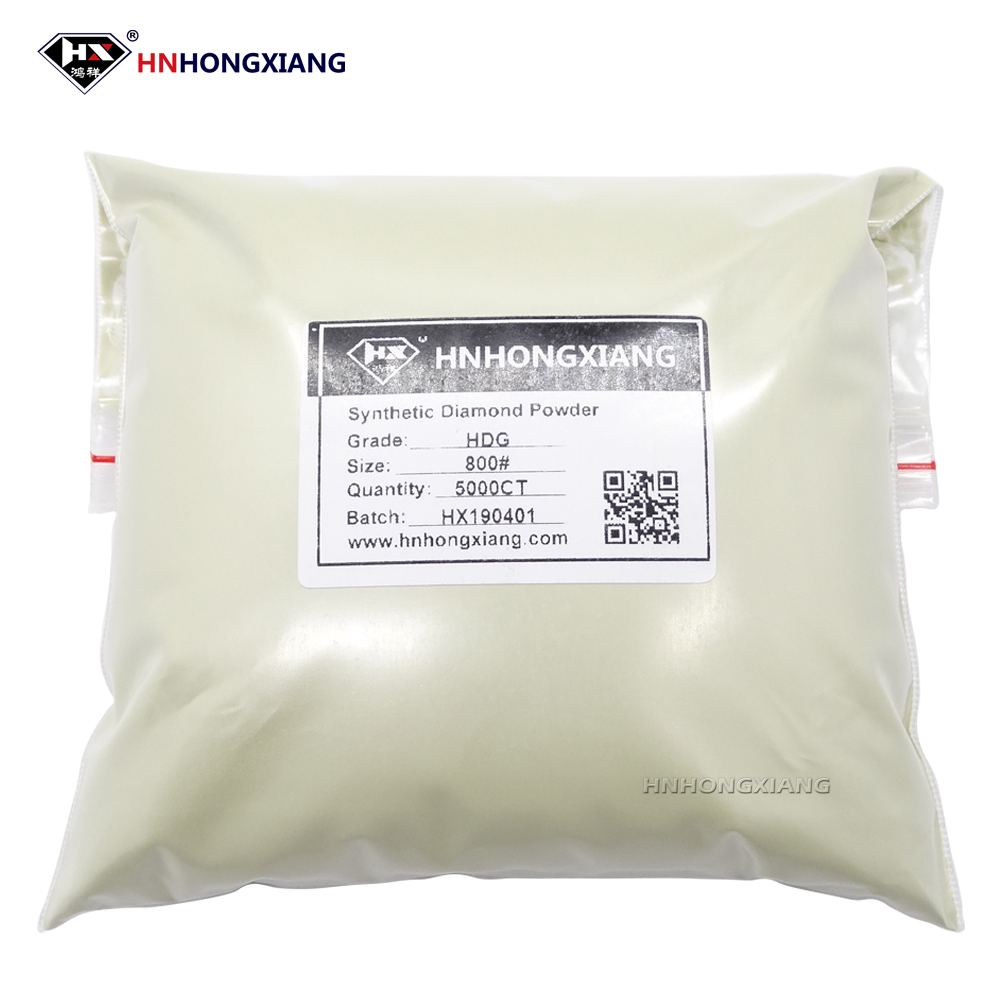

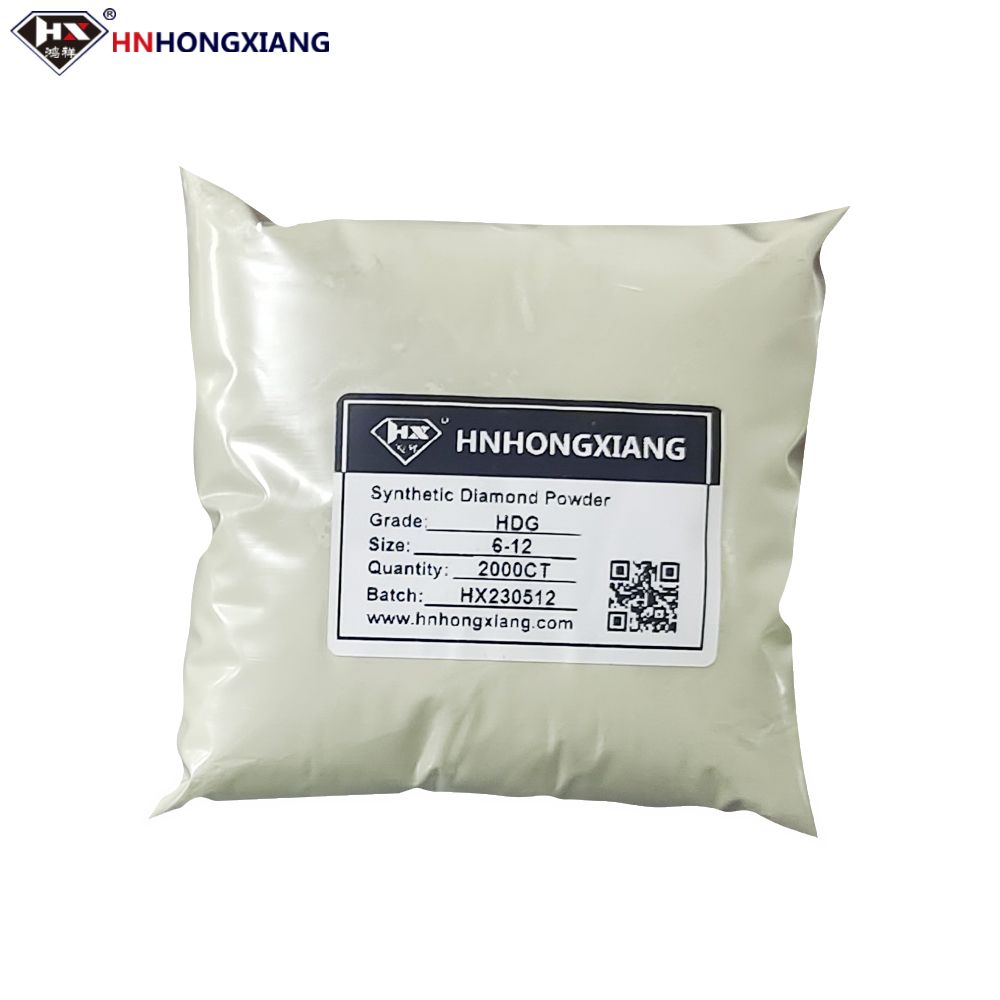

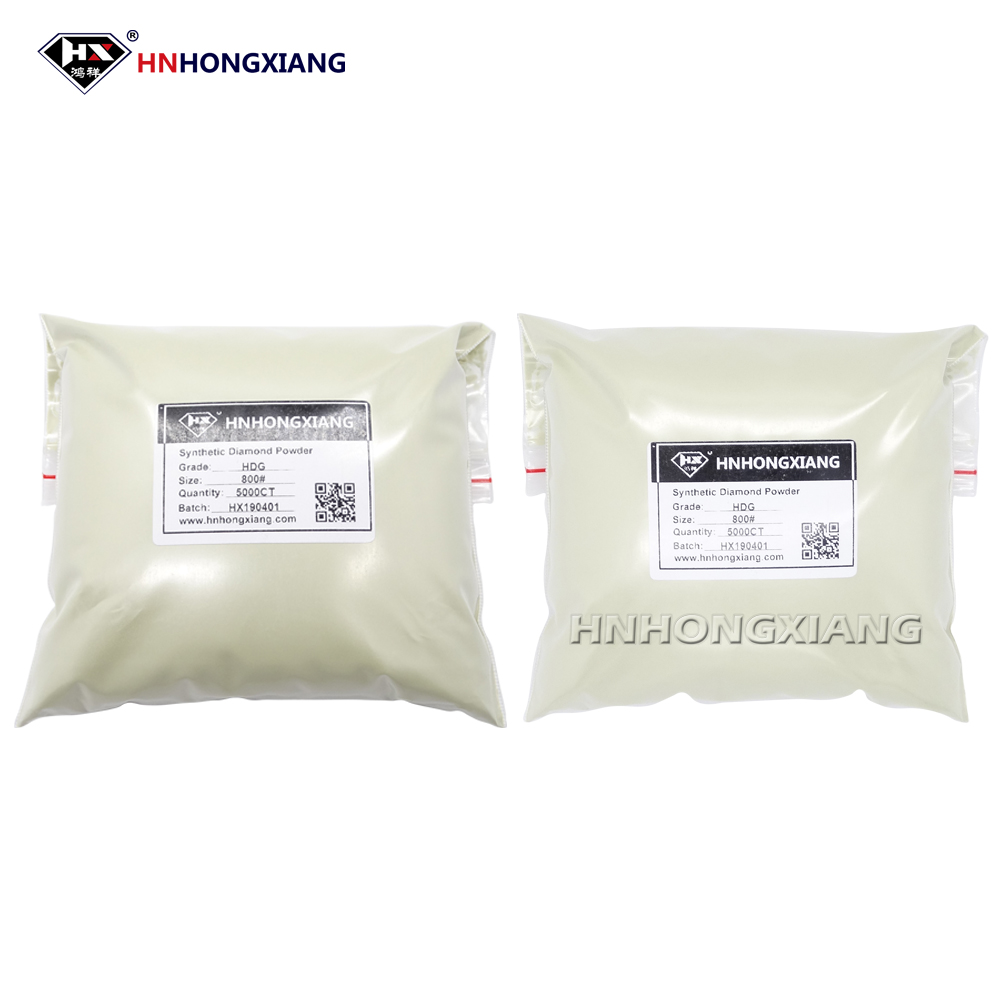

🛍️ Double/Triple Bag

100 ct
500 ct
1000 ct
5000 ct

✨ Custom quantities, private labeling, and special bag specifications are available. Contact our sales team for tailored packaging solutions.

🚚 Fast & Reliable Shipping

FedEx
DHL

International deliveries typically take 3–7 business days. Every shipment is fully insured, trackable, and supported with customs clearance documents.

MSDS
Commercial Invoice
Packing List
Air Waybill
Air Transport Report

Factory & Certificates

🏭 Factory & Quality Control

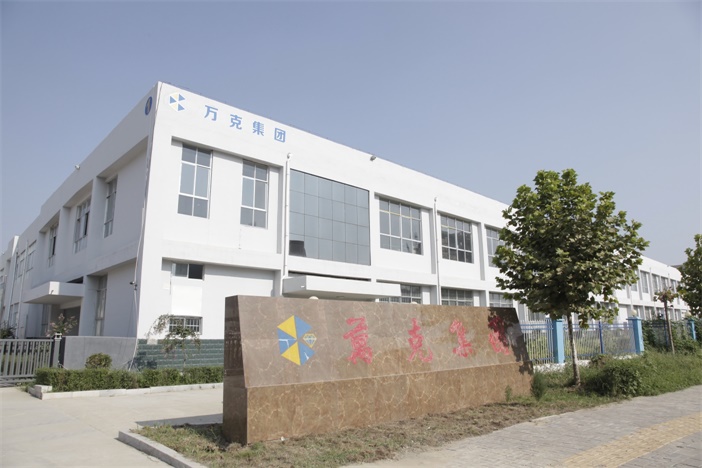

Founded in 1990, Zhecheng Hongxiang Superhard Material Co., Ltd. is a modern high‑tech enterprise integrating R&D, production, and sales. Located in Zhecheng, Henan – the “Hometown of Diamonds” in China – our facility covers 187 acres with a total floor area of 120,000 m² and a total investment of RMB 850 million. We operate an in‑house provincial‑level engineering research center and maintain a robust quality management system certified to ISO 9001:2008.

187 acres

Plant area

300+ units

Production & testing equipment

19+ patents

Granted invention patents

📜 Certifications & Export

ISO 9001:2015
High‑Tech Enterprise
Provincial R&D Center
52+ Export Countries

🔬 Third‑party audits (SGS, TÜV) available upon request. Full traceability from raw material to final shipment.

FAQ

📖 Frequently Asked Questions

1. What is the difference between HDG economical diamond powder and standard diamond powder?

HDG is made from low‑strength synthetic diamond raw material with irregular, multi‑edge crystals. It offers higher sharpness and better self‑sharpening, but slightly lower single‑particle strength than standard or premium grades. It is positioned for applications where extreme durability is not required, providing higher cutting efficiency and lower cost per use.

2. Which materials are suitable for HDG?

HDG is mainly suitable for grinding, cutting and polishing of non‑metallic hard & brittle materials such as ceramics, stone (marble, granite), glass, concrete, gemstones, and cemented carbide under light‑load conditions. For high‑load grinding of metals (steel, cast iron), please choose our high‑strength grades.

3. Can HDG be used in resin‑bonded grinding wheels?

Yes. HDG is a common raw material for economical resin‑bond diamond wheels, flexible abrasives, diamond stones, etc. The irregular crystal shape provides good bonding strength with resin and high sharpness, making it suitable for applications that require high grinding efficiency with moderate surface finish requirements.

5. Does HDG easily scratch the workpiece surface?

With proper particle size and process parameters, HDG does not cause extra scratches. However, due to its irregular and sharp crystal shape, excessive pressure or wide particle size distribution may lead to deeper scratches. We recommend a trial with fine HDG before precision processing, or choose our upgraded grades with narrower distribution and more regular crystal shape.

7. How much cheaper is HDG compared to standard grades?

Typically, HDG series is 20–40% lower in price than standard grades of the same particle size and purity (depending on particle size, order quantity and market conditions). For an exact quotation, please contact our sales team with particle size, quantity, and delivery requirements.

8. Can HDG be used for precision optics or semiconductor processing?

Not recommended. High‑precision applications such as silicon wafer lapping, optical lenses, and precision bearings require diamond powder with high strength, regular crystal shape, extremely narrow particle size distribution and ultra‑high purity. HDG is an economical grade; in these scenarios it may cause scratches, edge chipping, or short tool life. Please choose our HDH (high‑strength) or HDYH (premium) series.
