HDN Nano Monocrystalline Diamond Micron Powder
HDN Series / Grain size Nano (confirm) / Monocrystalline
HDN Nano Monocrystalline Diamond Micron Powder
HDN Nano Monocrystalline Diamond Micron Powder is a monocrystalline grade from the HDN series, produced factory-direct at our own base in Zhengzhou, Henan - the Diamond Capital of China. Standard grain size range: Nano (confirm). Each batch is checked for particle size distribution before packing, and can be supplied in trial quantities for process validation.
Advantage
- Nano-scale monocrystalline particles — one crystal, one defined edge
- Holds an edge geometry longer than a polycrystalline particle of the same size
- Disperses into slurries and stays in suspension
- Purity above 99.9 percent
- Ships in 1 to 2 working days from stock
Send your workpiece material, target surface finish and order quantity — we confirm the matching grade and sample route within 24 hours.
Product Overview
HDN Nano Monocrystalline Diamond Micron Powder is a nano-scale monocrystalline grade. The particles keep the single-crystal structure of a monocrystalline abrasive rather than the multi-layer structure of a detonation powder, at a size where they disperse into a slurry and stay there.
Monocrystalline nano diamond holds a defined edge far longer than a polycrystalline particle of the same size, which makes it the grade to reach for when the finishing step has to hold an edge geometry and not just polish.
Typical use is ultra-fine finishing and polishing slurries, and as an additive where a hard, sharp, chemically stable particle is wanted in a fine dispersion. Tell us the target size band and the medium and we will confirm the grade.
Standard Grain Size Chart
Sub-micron diamond powder is the finest end of the same grading ladder and is where most of the surface-quality risk sits: a single oversized particle sets the scratch depth of the whole batch. Every sub-micron lot is classified by settling and checked by laser diffraction before it is released.
| GradeChinese standard | Size range (µm)International standard | MeshSieve no. | Typical use |
|---|---|---|---|
| Sub-micronW0.25 – W1.5-Mirror finish and super-finishing | |||
| W0.25 | 0–0.25 | 60,000 | Mirror finish, super-finishing |
| W0.5 | 0–0.5 | 30,000 | Mirror finish, super-finishing |
| W1 | 0–1 | 15,000 | Mirror finish, super-finishing |
| W1.5- | 0–2 | 13,000 | Mirror finish |
| W1.5 | 1–2 | 12,000 | Mirror finish |
| W2.5 | 1–3 | 10,000 | Mirror finish |
| Fine micronW3 – W7Precision polishing where scratch depth matters | |||
| W3 | 2–3 | 7,000 | Mirror to precision polishing |
| W3.5 | 2–4 | 6,500 / 6,000 | Precision polishing |
| W4 | 2–5 | 5,000 | Precision polishing |
| W5 | 3–6 | 4,000 | Precision polishing |
| W6 | 4–6 | 3,500 | Precision polishing |
| W7 | 4–8 | 3,000 | Precision polishing |
Grades below W0.25 and custom sub-micron cuts are developed against your sample. D50, D90 and the upper cut are reported on the batch certificate.
Recommended Applications
Factory Checks Behind This Grade
HNHONGXIANG has produced synthetic diamond powder since 1990 in Henan, China. The factory covers about 124,000 square meters and supplies micron powder, diamond grit, coated diamond and functional diamond materials for global abrasive and precision processing customers.
Batch particle-size inspection
Laser diffraction PSD checked before packing, for stable batch-to-batch performance.
Factory-direct processing
Grading, washing, drying and packing handled in our own plant.
Custom grades available
Grade selection and private-label packaging to your specification.
Export support
Samples, trial orders and bulk shipments with full batch documents.
Packing And Export Options
Standard packing includes sealed bottles, bags or drums according to particle size and order quantity. Inner packaging is moisture-resistant and clearly labeled with product model, grain size, batch number and net weight.
Multiple package options
Sample, kilogram and bulk orders.
Moisture-resistant packing
Sealed bottles, bags or drums.
Clear labeling
Model, grain size, batch no. and net weight.
Export ready
Cartons or drums for air, express or sea.

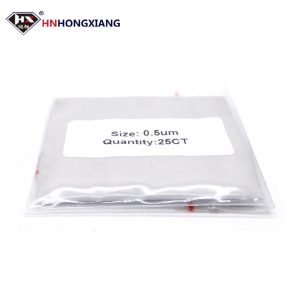

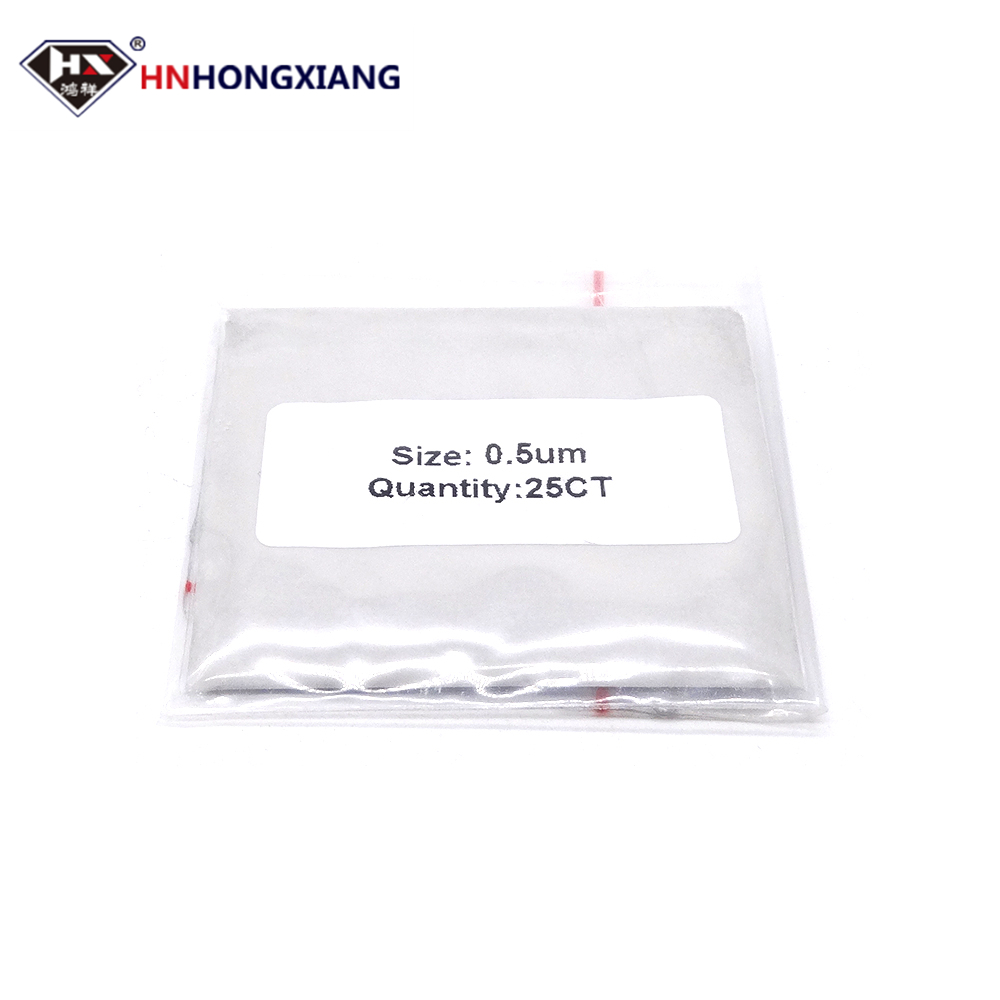

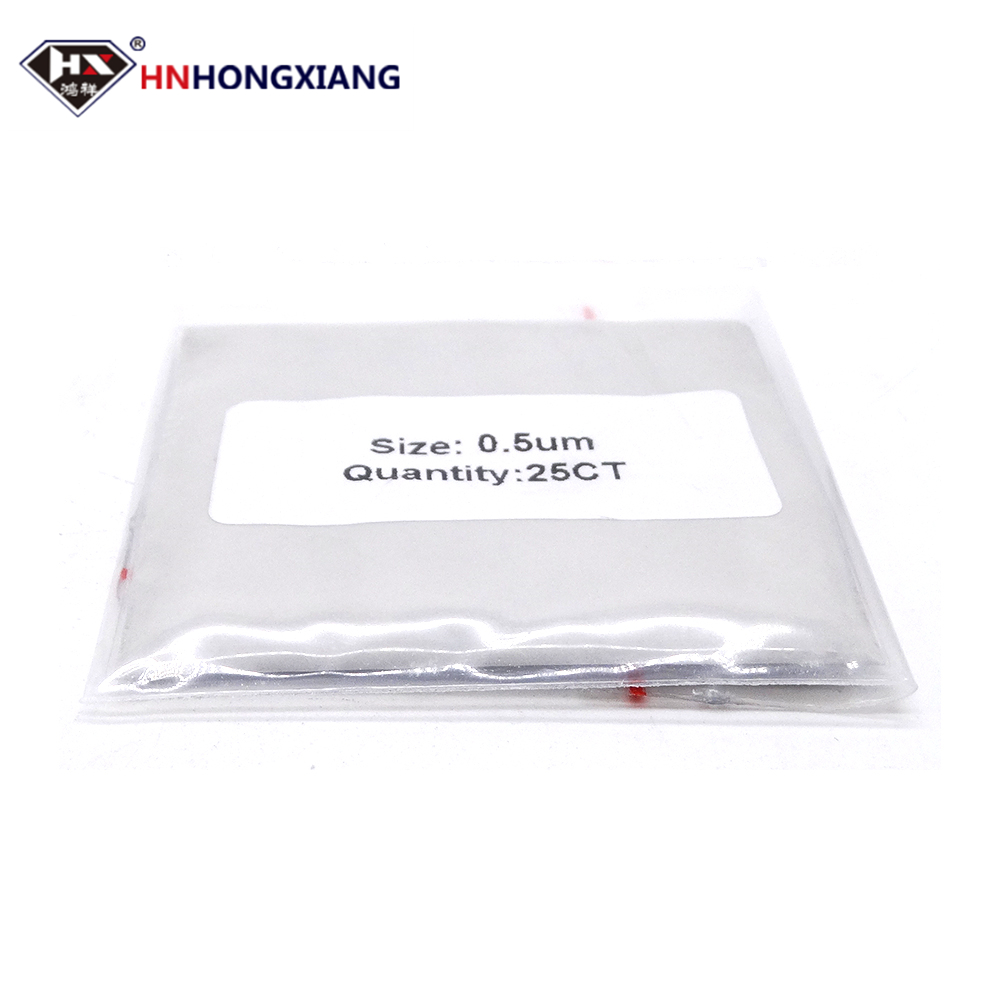

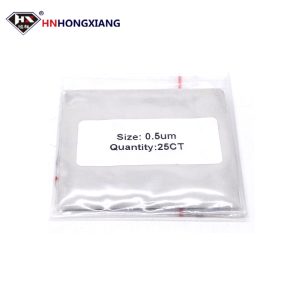

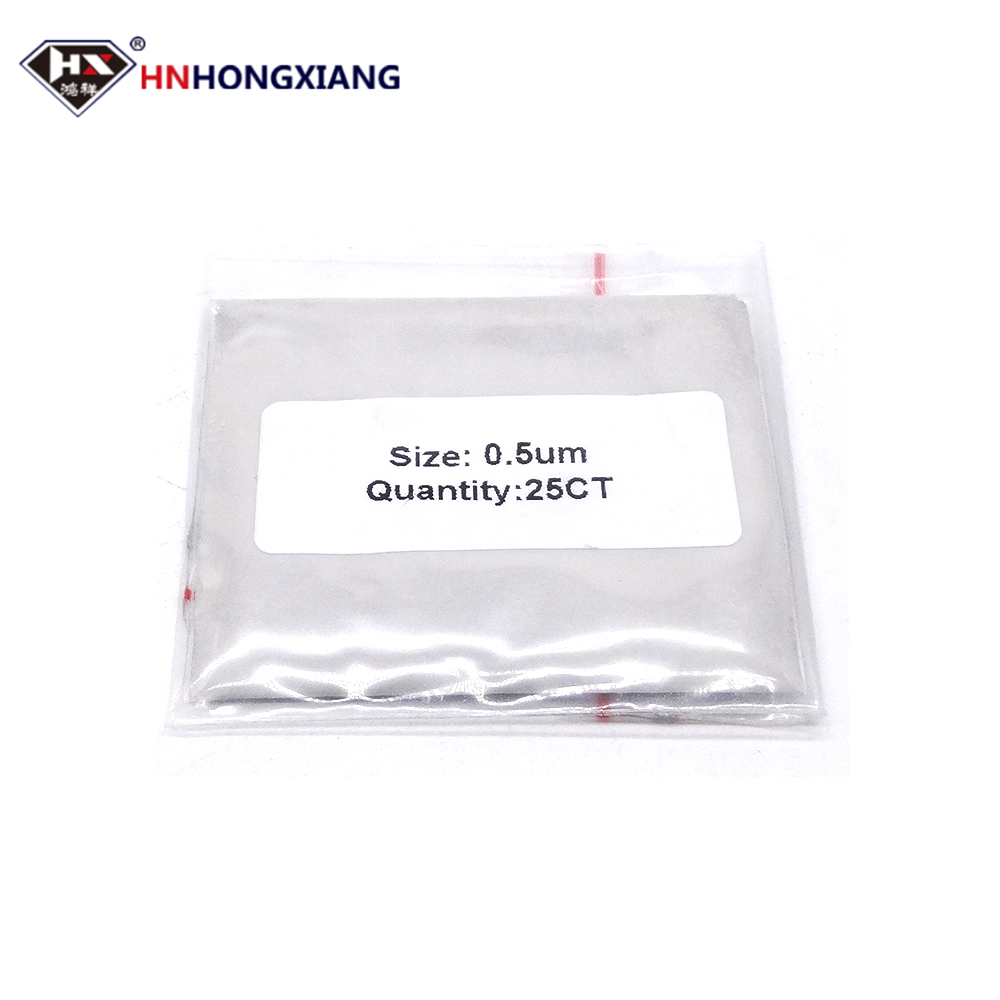

Bottle package
50 / 100 / 150 / 200 / 300 / 500 / 1000 / 2000 / 3000 / 5000 / 10000 ct
Bag package
100 ct – 10000 ct sealed foil bags, labelled per batch.
Shipping methods
Air, express or sea freight according to order quantity.
Where HDN Sits In The Fine And Nano Range
Below 0.5 µm the specification that decides the result is no longer the average particle size but the top cut and the residue. This table shows the fine and nano grades we produce.
| Grade | Type | Size range | Key property | Typical use |
|---|---|---|---|---|
| HDYM | Monocrystalline, sub-micron | Below 0.5 µm | Uniform PSD, sharp edges | Precision polishing of ceramics, sapphire, carbide and metals |
| HDYMC | Monocrystalline, sub-micron | Custom, sub-0.5 µm | Ash content set to your specification | Slurry and paste formulations with a fixed residue limit |
| HDNThis grade | Nano monocrystalline | Nano range | Monocrystalline nano particles | Ultra-fine finishing and polishing slurries |
| HDPN | Nano polycrystalline | 5 — 500 nm | Detonation synthesis, high specific surface area | Diamond coating, nano polishing, composites, thermal management |
What To Include
Send the current product, particle size target and process problem. We will confirm the matching grade, sample route and packing option.
