HDYS Agglomerated Diamond Powder
HDYS Series / Grain size 20 - 50 um / Polycrystalline
HDYS Agglomerated Diamond Powder
HDYS Agglomerated Diamond Powder is a polycrystalline grade from the HDYS series, produced factory-direct at our own base in Zhengzhou, Henan - the Diamond Capital of China. Standard grain size range: 20 - 50 um. Each batch is checked for particle size distribution before packing, and can be supplied in trial quantities for process validation.
Advantage
- Near-spherical agglomerates of micron diamond in a special binder
- Each cluster behaves as a single abrasive with many cutting edges
- Self-renewing action reduces pad and wheel dressing
- Open porosity holds slurry and carries heat away from the workpiece
- Standard agglomerate size range of 20 to 50 µm
- Custom agglomerate sizes available on request
Send your workpiece material, target surface finish and order quantity — we confirm the matching grade and sample route within 24 hours.
Product Overview

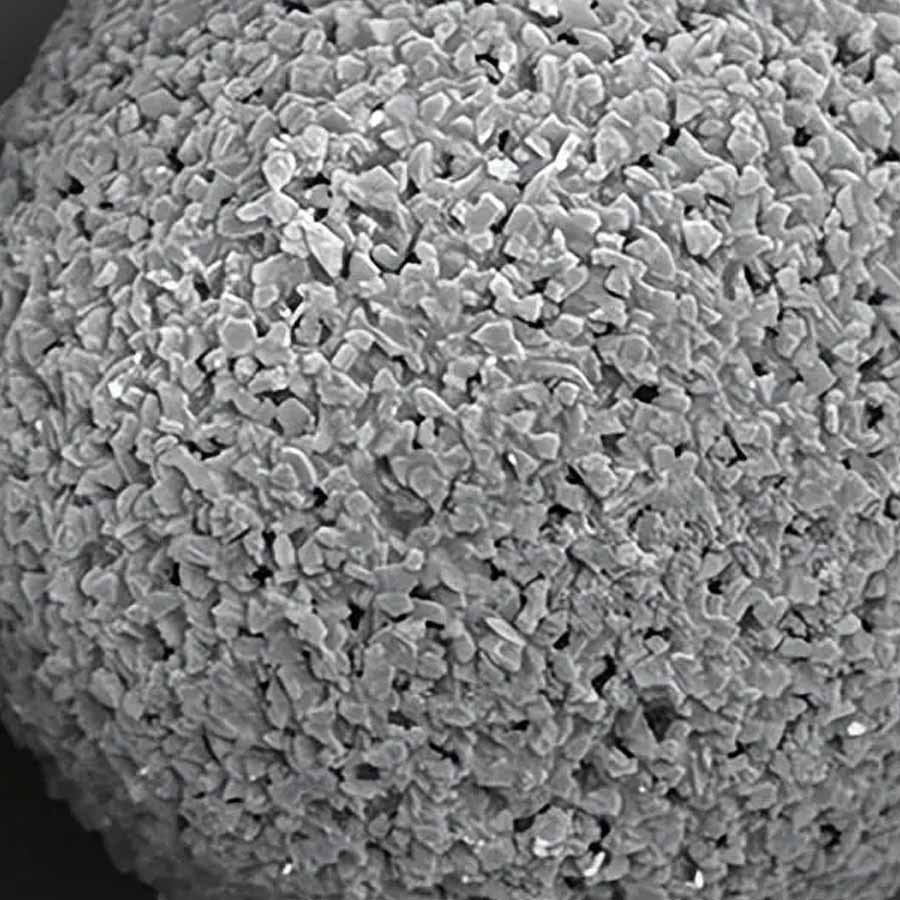

HDYS Agglomerated Diamond Powder is not a single particle but a controlled cluster: micron diamond held together with a special binder into a near-spherical agglomerate, typically 20 to 50 µm across, with the individual diamond grains sized inside it.
The cluster behaves like a single abrasive with many cutting edges. While it is intact it cuts at the agglomerate size with a surface finish closer to the size of the grains inside it; as it wears, the surface grains dull and release, exposing new edges underneath. That self-renewing action reduces the number of pad or wheel dressings a process needs, and the open porosity in the cluster holds slurry and carries heat away from the workpiece.
Typical use is wafer thinning and polishing slurries for SiC, GaN and silicon, finishing of sapphire, optical crystal, phone cover glass and microcrystalline glass, fine ceramic and gemstone processing, and the manufacture of diamond polishing slurry and polishing pads.
Standard Grain Size Chart
Agglomerated diamond is quoted by the cluster size, with the size of the diamond grains inside it set to suit the surface finish you need. HDYS is supplied as standard from 20 to 50 µm; other cluster sizes are produced to order.
| Agglomerate size (µm)Cluster diameter | Internal grain sizeGrain inside cluster | Structure | Typical use |
|---|---|---|---|
| Standard agglomerate size20 – 50 µmWafer thinning, lapping and polishing | |||
| 20 – 50 | Set to target Ra | Clustered micron diamond in a binder | Wafer lapping, thinning and polishing |
| Custom | To specification | Custom internal grain size | Set cluster and grain size together |
Tell us the target Ra and the slurry or bond you are using, and we will confirm the cluster size together with the internal grain size on a sample.
Recommended Applications
Factory Checks Behind This Grade
HNHONGXIANG has produced synthetic diamond powder since 1990 in Henan, China. The factory covers about 124,000 square meters and supplies micron powder, diamond grit, coated diamond and functional diamond materials for global abrasive and precision processing customers.
Batch particle-size inspection
Laser diffraction PSD checked before packing, for stable batch-to-batch performance.
Factory-direct processing
Grading, washing, drying and packing handled in our own plant.
Custom grades available
Grade selection and private-label packaging to your specification.
Export support
Samples, trial orders and bulk shipments with full batch documents.
Packing And Export Options
Standard packing includes sealed bottles, bags or drums according to particle size and order quantity. Inner packaging is moisture-resistant and clearly labeled with product model, grain size, batch number and net weight.
Multiple package options
Sample, kilogram and bulk orders.
Moisture-resistant packing
Sealed bottles, bags or drums.
Clear labeling
Model, grain size, batch no. and net weight.
Export ready
Cartons or drums for air, express or sea.
Bottle package
50 / 100 / 150 / 200 / 300 / 500 / 1000 / 2000 / 3000 / 5000 / 10000 ct
Bag package
100 ct – 10000 ct sealed foil bags, labelled per batch.
Shipping methods
Air, express or sea freight according to order quantity.
Where HDYS Sits In The Functional Diamond Range
Functional diamond is where the diamond stops being only an abrasive. Agglomerates, metal coatings and boron doping each change how the particle behaves in a bond, a slurry or a coating.
| Grade | Type | Base material | Coating / treatment | Typical use |
|---|---|---|---|---|
| HDYSThis grade | Agglomerated | Micron diamond plus a special binder | Agglomerated into near-spherical clusters | Wafer thinning and polishing slurries, polishing pads, fine grinding wheels |
| T | Metal coated | Monocrystalline grit | Titanium | Metal-bond stone tools: saw segments, blades and drills |
| N | Metal coated | Monocrystalline grit | Nickel, electroplated or electroless | Resin-bond wheels, electroplated burrs, diamond wire |
| HBDD | Boron doped | Boron-doped diamond | Electrically conductive, no metal coating | Wastewater treatment electrodes, electrochemical sensing, high-power devices |
What To Include
Send the current product, particle size target and process problem. We will confirm the matching grade, sample route and packing option.
